SET SAIL

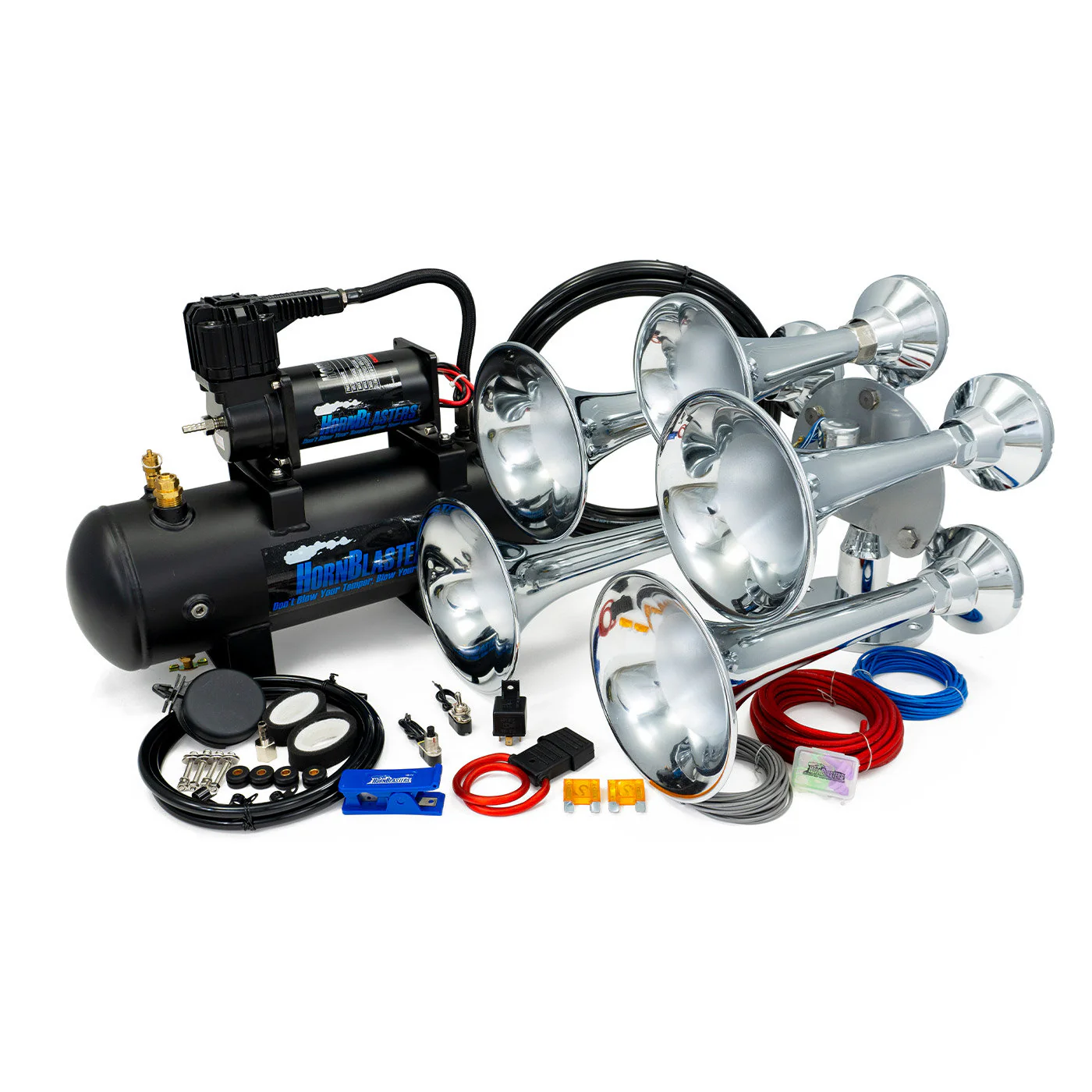

Make a bold statement with the Admiral 228H Train Horn Kit. Impress with its stunning chrome finish and powerful 5-chime train horn sound. Ideal for the road or high seas, this kit is designed to command respect. The brass train horn is paired with the beginner-friendly HornAir 228H air source unit. It is pre-plumbed and pre-wired for easy installation and provides 2 gallons of air for up to 5 seconds of continuous honk time. Get the complete kit with all required components and detailed instructions.

Bold Aesthetics & Sound: The Admiral 228H boasts a lustrous chrome finish and delivers an authoritative 5-chime train horn blast, ensuring you stand out whether on land or sea.
User-Friendly Installation: Pre-plumbed, pre-wired components and a pre-installed electric air valve make the setup of this kit hassle-free, even for beginners.
Continuous Performance: Equipped with a 2-gallon air capacity, experience up to 5 seconds of uninterrupted, powerful honking.
Complete Package: This all-inclusive train horn kit ensures you have every component needed for a seamless setup, complemented with detailed instructions.
Sturdy & Resilient: Designed with a heavy-duty chrome finish, the Admiral is built for durability and to withstand various conditions.

(Note: Tank-mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

Forget regular car alarms - our Train Horn will give those car thieves a stain in their undies! With its ear-splitting volume and unmistakable tone, our train horn will stop any criminal in their tracks. Check out our video below to see for yourself how our Train Horn outperforms any other car alarm on the market. Protect your ride with this ultimate deterrent - the only alarm that’s sure to get your neighbors’ attention!

Admiral chrome train horn
HornBlasters 228H air source unit
HORNBLASTERS 110/145 PSI PRESSURE SWITCH WITH LEADS
Remote mountable intake filter assembly
Spare air filter elements
10ft 1/2" D.O.T. Approved air line
6ft 3/8" air line (for intake)
22ft of 10-gauge red wire
22ft of 18-gauge blue wire
22ft of 18-gauge grey wire
Pre-installed 3/8" electric air valve
Brass NPT fitting kit with a safety blow-off & drain cock
Complete wiring kit with fuse holder & fuses
Mounting hardware
Detailed instructions
Earplugs

Part Number	HK-C5-228H
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Voltage	12-Volt DC
Horn	Admiral train horn
Horn Air Inlet	1/2" air line
Horn Length	17" (431.8 mm)
Horn Width	16" (406.4 mm)
Horn Height	15.5" (393.7 mm)
Horn Weight	19.8 lb (8.98 Kg)
Air Source Unit	HornBlasters 228H air source unit
Working Pressure	150 PSI
Air Source Length	18.9″ (480.6 mm)
Air Source Width	5.9″ (149.86 mm)
Air Source Height	13.7″ (347.98 mm)
Air Source Weight	17.15 lb (7.78 Kg)
Air Source Kit Tank	2-gallon 5 port air tank
Volume	2 Gal (8.8 L)
Air Source Kit Compressor	HB-2 air compressor
Max Amperage	19 amps
Maximum Duty Cycle	30% @ 100 PSI

2.0 GALLON TANK	FILL RATE
0 to 145 PSI	3 min. 40 sec.(± 10 sec.)
110 to 145 PSI	1 min. 15 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
Warranty
This product is backed by our 2-Year Manufacturer's Defect Warranty!
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise.
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.

ANCHORS AWEIGH

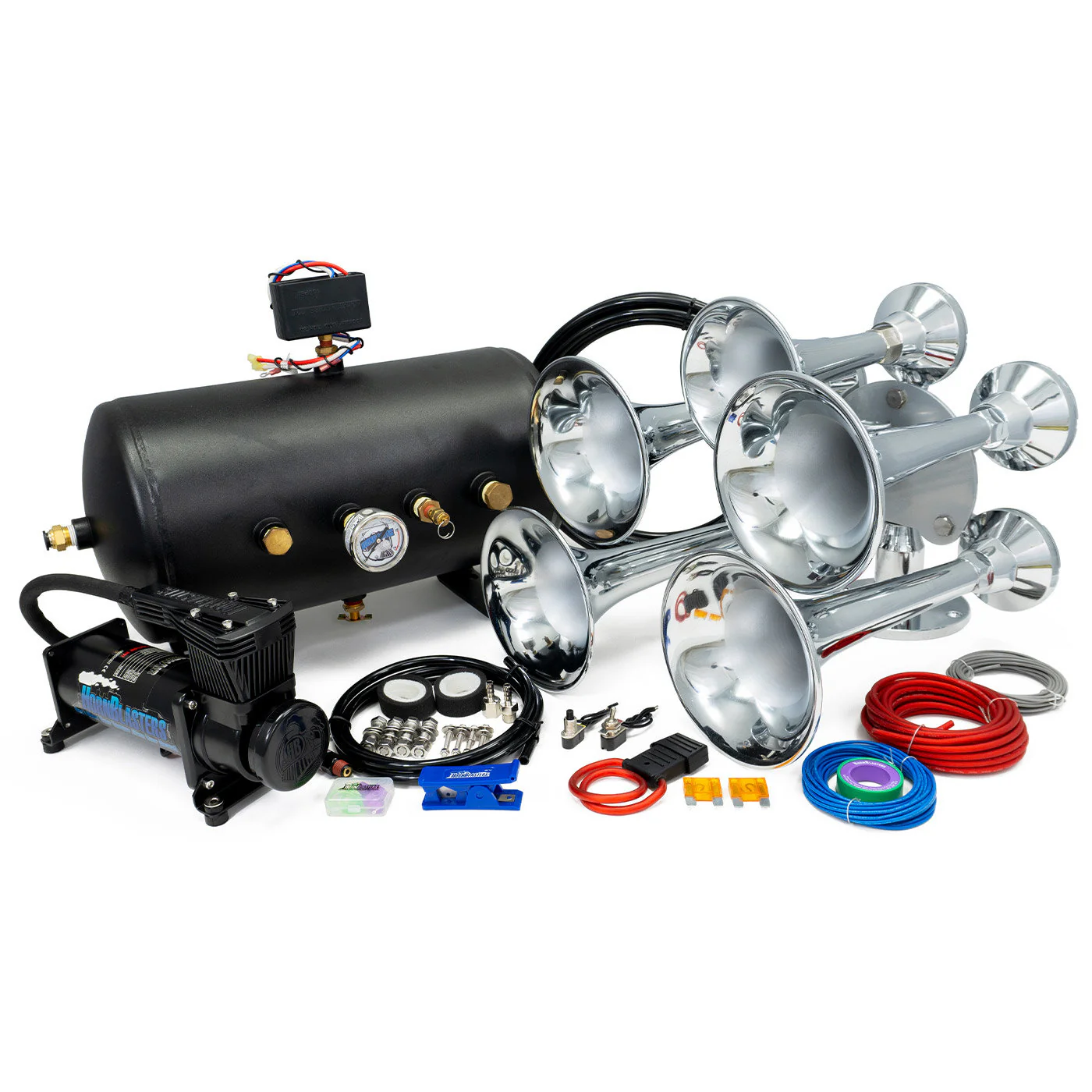

Make your presence known with the Admiral 544K train horn kit! With its impressive loudness, long blast time, and quick recharge rate, this kit is the perfect choice for anyone looking to make a statement on the road. The weather-resistant design ensures that this train horn can handle any condition you encounter on the highway.

The eye-catching chrome 5-chime Admiral train horn is not just a looker, but a true performer. Made from solid brass and covered in a shiny chrome finish, it's sure to turn heads before it even makes a sound. And once it does make a sound, you can be sure it will be heard from miles away thanks to the HornAir 544K onboard air system. This system provides up to 10 seconds of continuous blast time, as well as support for other onboard air needs like tire inflation and small air tool use.

Stunning & Resilient Design: Featuring a dazzling chrome 5-chime Admiral horn crafted from solid brass.
Unparalleled Sound Intensity: Backed by the HornAir 544K onboard air system, the Admiral 544K guarantees your commanding presence is heard from miles away with up to 10 seconds of continuous honk times.
Speedy & Efficient Performance: Equipped with the heavy-duty HB-1NM air compressor, experience rapid air refills and the versatility to power moderate pneumatic tasks.
Multi-Functional Air System: Beyond the commanding honk, the kit supports diverse onboard air needs like tire inflation and the operation of small air tools.
Complete Readiness: With an extra-large 5-gallon air tank and an accurate stainless liquid-filled air pressure gauge, the Admiral 544K is set to deliver unmatched reliability and performance.

Admiral train horn
5-gallon 8 port air tank
Hornblasters hb-1nm air compressor
110/150 PSI pressure switch w/ 40 amp relay
17ft of 1/2" Air Line
Remote mountable air filter housing
Spare air filter elements
Brass NPT fitting kit with a safety blow-off & drain cock
HornBlasters 200 PSI stainless steel fiquid-filled air gauge
22ft of 8-gauge red wire
22ft of 18-gauge blue wire
22ft of 18-gauge grey wire
Complete wiring kit with fuse holder & fuses
Air line cutter
Earplugs
Compressor mounting hardware
Installation instructions

Part Number	HK-C5-544K
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Voltage	12-Volt DC
Horn	Admiral train horn
Horn Air Inlet	1/2" air line
Horn Length	17" (431.8 mm)
Horn Width	16" (406.4 mm)
Horn Height	15.5" (393.7 mm)
Horn Weight	19.8 lb (8.98 Kg)
Air Tank	HornAir 5-gallon 8 port air tank
Tank Length	20.5″ (520.7 mm)
Tank Diameter	9.5″ (241.3 mm)
Tank Height	11.5″ (292.1 mm) (With Legs)
Tank Weight	20 lb (9.07 Kg)
Tank Ports	x7 1/2" NPT, x1 3/4" NPT
Average Fill Time	1 Min 30 Sec
Max amperage	25 Amps
Maximum duty cycle	100% @ 100 PSI
Flow Rate @ 0 PSI	1.75 CFM
Compressor length	10.75″ (273.05 mm)
Compressor width	4″ (101.6 mm)
Compressor height	6.75″ (171.45 mm)

5.0 GALLON TANK	FILL RATE
0 to 150 PSI	6 min. 45 sec. (± 10 sec.)
110 to 150 PSI	2 min. (± 05 sec.)

* Supply Voltage: 13.8 Volts

5-Gallon Air Tank Dimensional Drawing

Admiral 544K Train Horn Kit
